Laminated and Color Printing Napkin Making Machine With 2 Deck
Description

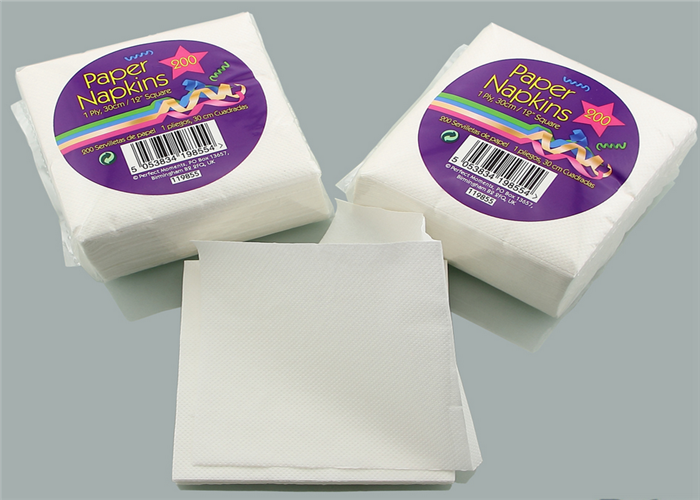

Laminated and Color Printing Napkin Making Machine With 2 Deck is used for produce square napkin tissue from jumbo roll. The process
including embossing , folding , cutting and so on process. The size
for the machine vary from 200mm to 430mm to be customerized. The
machine is customerized and additional function like color printing
and lamination can be specified. The speed for the two deck napkin
making machine is 3000 sheets / min for 200mm size and 2200 sheets
/ min for 300mm size.
Specification
Open size of finished product | 200*200-430*430mm (to be specified) |
Diameter of Raw Paper Roll | 1100mm(other size to be specified) |
Inner Diameter of Paper core | 76.2mm(3 inch) (other size to be specified) |
Capacity | 3000pieces/min |
Counting Device | Electronic Counting |
Embossing Roller | Woolen Roller |
Power | Frequency Conversion Speed Regulator |
Calendaring | Steel to steel or steel to rubber |
Embossing unit | Felted roller, woolen roller, Rubber roller |
Color Printing | 1-2 color |
Dry Device | Hot Wind Heating System |
Spare Parts List
| NO | ITEM | QUA |
| 1 | Plastic male knife | 4 |
| 2 | Band Saw | 2 |
| 3 | Tool Box | 1 |
| 4 | Grinding Stone | 4 |
Feature
- Speed: 3000 sheets / min
- Folding Type: 1 / 4 and 1 / 8 or 1 / 6 or M fold or Two folding
Type
- Embossing: steel to steel or steel to paper.
- Important parts Bearing: NSK
- Important parts Steel: SKD
- PLC: Delta
- Frequency Converter Delta
- Pneumatic Parts AIRTACK
- Motor: SIEMENS
- Pneumatic Parts AIRTAC
- Photoelectrical switch (magic eye) Omron
- 20mm thickness wall board plate for back stand
- 40mm thickness wall board plate for embossing unit and color
printing unit
- 30 mm thickness wall board plate for cylinder folding parts
Introduction of main parts
Paper-feeding part
One Layer and Belt to deliver paper and controlled by Pump
Raw Paper Manual Adjustment
Embossing Part
One unit steel to woolen Roller
Mechanical pressure control
cotton cloth and paraffin oil Cleaning Device
Folding Part
Leading Paper Roll Function , the folding tension of the fore part
adjustable
Counting Device: Pneumatic dislocation type
Control Unit
Frequency Conversion Device
Automatic Counting Function
Emergency Device
Voltage: AC380V 50HZ Main Motor 2.2KW,
Air pressure required less than 0.5 MPA
