    Embossing Unit 3000 Sheets / Min 380V 50HZ Napkin Folding Machine

    Ask Lasest Price
    Brand Name : YU SHENG DA
    Model Number : YD-NP-II
    Certification : CE
    Price : Negotiable
    Supply Ability : 2 sets per month
    Delivery Time : 45 days after down payment
    • Product Details
    • Company Profile

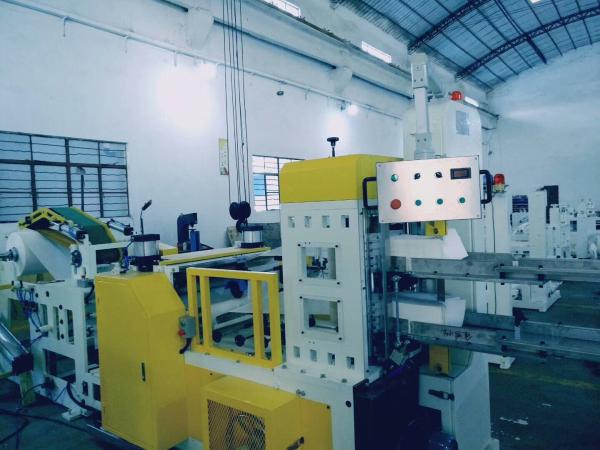

    Embossing Unit 3000 Sheets / Min 380V 50HZ Napkin Folding Machine

    Full Automatic Napkin Making Machine With Embossing And Lamination Unit


    Description


    Full Automatic Napkin Making Machine With Embossing And Lamination Unit is used for making napkin tissue by embossing, folding, electronic counting and cutting.The machine size varied from 200mm to 430mm to be customerized. The machine is customerized and additional function like color printing and lamination can be specified. The speed for the two deck napkin making machine is 3000 sheets / min for 200mm size and 2200 sheets / min for 300mm size.


    Specification


    Folding size

    140*140mm

    Unfolded size

    280*280 mm

    Specification of raw paper

    <= 560*1200 mm

    Machine capcaity

    speed is 1600 pcs/min

    Folding way

    double triangle 1/4 folding

    Embossing unit

    The buyers should prepare it by themselves,we provide drawing

    Paper breakdown device (it is set between embossing unit and forming unit .).

    One group knives:it automatically cut raw paper.

    The guide pipe is made from aluminum alloy,which can make sure the concentricity.

    Feeding part:It adopts belt to control the feeding process ,AP ration geal can adjust stepless.

    Loading material pneumatically(the buyer should prepare the air compressor by himself ).

    Sharpen the knives pneumatically .

    Automatic counting system,

    Main motor is frequency conversion motor:3kw,380v,50HZ.

    Machine head transmission

    standard struction commutator.

    Output holder is double layer and made from stainless steel.


    Spare Parts List


    NO

    ITEM

    QUA

    1

    Plastic male knife

    4

    2

    Band Saw

    2

    3

    Tool Box

    1

    4

    Grinding Stone

    4
