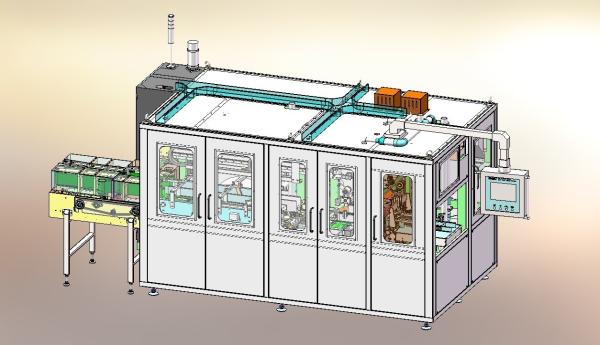

| COMPONENT | FUNCTION | CONFIGURATIONS | REMARK |
| Infeed | Sorting Device | Servo driven | Servo driven dual stages time belt infeed. Photo cell auto control
infeed position. With overflow jam protection and pusher paper jam
alarm function |
| Conveyor Device | Servo driven | Infeed conveying by flight bars driven by servo. Smart infeed
ensure good timing of the bars matching the paper speed. |
| Main Pusher Component | Pushing Device | Dual pusher moved by servo motor, aided by vertically reciprocal
movement of the cylinders for up and down swing | Dual pusher moved by servo motor, speed controlled by intelligent
multi-arcs, with pusher overload protection and sealing limit
protection function |
| Forming Mould | GOORUI blower | Adopting negative pressure forming. Each product has its own
specific mold, seal ends neatly aligned |
| Bag forward transmission and forming | Bag opening device | Servo driven | Bag opening with up and down motion suckers driven by servo, speed
and position adjustable. |
| Forward infeed and bag distracting claw | Forward infeed driven by servo. Claws distracting left and right
sides of the bag are driven by air cylinder | Forward infeed driven by servo. Speed and postion adjustable. Claws
distracting left and right sides of the bag are driven by air
cylinder |
| Clamping device | clamp driven by left and right air cylinder | Paper clamping driven by left and right air cylinder, reshaping the
paper before bagging |
| Tube Film | Tube film loading device | air expansion shafts,inverter motor | Roll tube film loaded on air shaft, and film released by inverter
motor. |
| Tube film accumulating device | Floating roll, guider | film tension controlled by floating roll, and film leveling
controlled by guider |
| Tube film bag making device | Bag drawing by servo,color mark photo cell,cylinder cutter | Bag drawing by servo,cutting position controlled by color mark
photo cell, cutting made by cylinder vertically reciprocation
motion. |
| Bag Transmission | Bag Conveying Device | Servo driven | Transmitted by belt driven by servo motor, speed and position
adjustable. Defect bag auto removal function. |
| Sealing Device | Seal jaw motion | Servo driven | Sealing jaw up and down motion are driven by servo motor. With film
anti-lock function, auto alarm or stop when torque limiter overload |
| Seal heating plate | Nuopai Intelligent temperature Controlling Module | Germany Nuopai intelligent temperature controlling module is
adopted, constant temperature heating and instant temperature
heating devices optional, conveniently adjusted |
| Trim cutting | Cylinder cutter | The trim are cut by linear motion cylinder embedding blade |
| Negative Pressure System | Negative Pressure System | GOORUI blower, cylinder valve | GOORUI blower is used for bag opening, bag conveying, molding and
negative pressure suction for the trims. The angle and sequence of
each motion are controlled by using cylinder valve. |
