    CE Two Fold 380V 50HZ 3200 sheets / Min Paper Towel Making Machine

    Ask Lasest Price
    Brand Name : YU SHENG DA
    Model Number : YD-PT-I
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Delivery Time : 50 work days after down payment
    • Product Details
    • Company Profile

    CE Two Fold 380V 50HZ 3200 sheets / Min Paper Towel Making Machine

    Paper Towel Making Machine , Two Fold Towel Printing Machine

    Specification for V FOLD Paper Towel Machine_20210...

    Description


    Paper Towel Making Machine , Two Fold Towel Printing MachineProduce Two FOLD Hand Towel with embossing and cutting off the towel paper This kind of towel paper is used widely in hotel, office and kitchen etc, that is convenient and sanitation. We adopt original creation full vacuum absorption technology, the adaptability of raw material is so strong .The folding, cutting ,counting etc several processes are going together.


    Function and Features

    1. Automatic counting sub-bit row of the output

    2. Spiral blade shear, vacuum adsorption folding

    3. Unwinding stepless speed regulation, can be adapted to high and low tension of the base paper

    4. Electronically Controlled Pneumatic, easy to operate,two steel to rubber embossing,edge press device

    5. Product width of the range, user-friendly marketing


    Specification:

    Model
    N-2L/3L/4L/5L/6L
    Finished Products Size
    230L*230±2MM
    Raw Material Width
    480mm
    690mm
    990mm
    1150mm
    Raw Material Core Diameter
    76.2mm
    Speed
    0-100m/min (depending on the machine model)
    Power
    Frequency conversion speed regulator
    Programmable controller
    PLC computer controller
    Folding Type
    Vacuum suction N fold
    Transmission unit
    Timing Belt
    Counter
    Ink Marked
    Embossing Unit
    Steel to steel
    Slitting Unit
    Pneumatic dot slitting
    Pneumatic System
    3HP Air Compressoor, mini air pressure 5kg/cm2pm (Provider by customer)
    Total Power
    11kw
    15kw
    15kw
    22kw
    Dimension
    4000*(1700-2500) *1900mm ,Depend on the size and configure
    weight
    2-5 tons, Depend on the size and configure

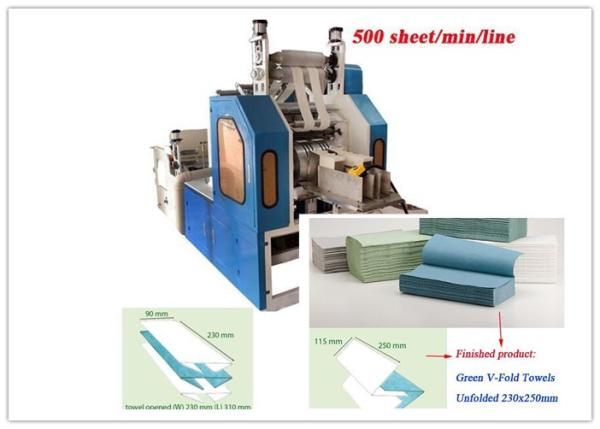

    Machine Detail Pictures:

    CE Two Fold 380V 50HZ 3200 sheets / Min Paper Towel Making Machine
    CE Two Fold 380V 50HZ 3200 sheets / Min Paper Towel Making Machine
    CE Two Fold 380V 50HZ 3200 sheets / Min Paper Towel Making Machine

    Finished Products Pictures:

    CE Two Fold 380V 50HZ 3200 sheets / Min Paper Towel Making Machine
    CE Two Fold 380V 50HZ 3200 sheets / Min Paper Towel Making Machine
    CE Two Fold 380V 50HZ 3200 sheets / Min Paper Towel Making Machine
    CE Two Fold 380V 50HZ 3200 sheets / Min Paper Towel Making Machine

    Optional machine:

    CE Two Fold 380V 50HZ 3200 sheets / Min Paper Towel Making Machine

    Optional Hand Towel Bagging Machine:

    Production speed: 6-9 bagss/min
    Packing size: length 1150 mm, width 70 mm
    Power: 200W 380V 50Hz
    Dimensions: 1500*850*700mm
