Multi-Function Facial Tissue Packaging Machine To Packing Napkin
Paper
Description

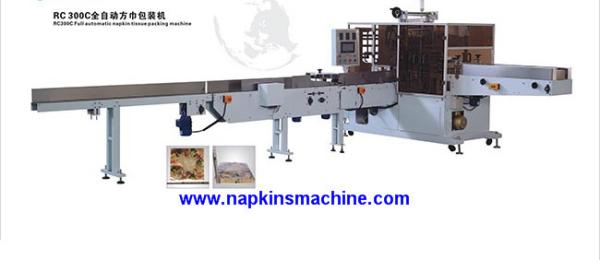

Automatic Napkin Packing Machine Facial Tissue Packaging Machine is
used to pack the napkin paper in Plastic bag as the picture shown
above automatically with high speed. This machine with compact structure, attractive appearance, simple
operation, easy maintenance, high degree of automation advantage,
with moisture protection, durability, improve product quality
function. This is an ideal automatic napkin packaging equipment.
Main features
1 . This machine suitable for the packing of thin napkins and
square tissues.
2 . Adopt multi-function digital frequency control, PLC to make the
control more advanced, easy to adjust and maintains.
3 . Touch screen human-machine operation interface ,easy to set the
parameter.
4 . Alarm automatically when there is no film, malfunction alarm
display, to make operation and maintains easier and faster.
5 . The control of length of film has been set with two model, one
is the setting of length ,the other is color code tracking.
6 . Main electric elements adopts international famous brand, the
quality is more stable and reliable.
7 . Vacuum film feeding system to make the feeding of film more
smoothly and running more stable.
8 . The machine can equip with coding unit and code printing unit.
9 . Change the specification more easy and faster
Parameters
Outline Dimension (mm) | 3560*5885*1925 | 3560*5885*1925 | 3560*5885*2050 |
Speed (bags / min) | 25-50 | 35-65 | 25-50 |
Packing size (mm) | 100-230*100-150*40-100 | 100-230*100-150*40-100 | 100-230*100-200*40-100 |
Machine's Weight (KG) | 3000 | 3800 | 3800 |
Motor Consumption (KW) | 3.66 | 3.66 | 3.66 |
Heating Consumption (KW) | 3.6 | 3.6 | 3.6 |
Power | 380V 50Hz | 380V 50Hz | 380V 50Hz |
Power Consumption (KW) | 7.26 | 7.26 | 7.26 |
Packing film | CPP,PE,OPP/CPP,PT/PE and other film sealed on both sides |
Sample
