SIEMENS MOTOR 3000 Sheets / Min PLC Facial Tissue Making Machine
| Brand Name: | YU SHENG DA |
| Model Number: | YD-NP-I |
| Certification: | CE |
| Place of Origin: | China |
| Minimum Order Quantity: | 1 Set |
| Price: | negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets per month |
| Delivery Time: | 60 working days after received your payment |
| Packaging Details: | wooden pallet at the bottom and plastic packing for the machines |
Product Description
High Quality Facial Tissue Machine Paper Product Making Machinery
Features:
Facial tissue making machine working flow:The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.
This machine adopts independent servo motor drive,and automatic paper tension control automatic marking functings.It featurse of high speed,nice folding and easy operation.
1.Can order steel to rubber embossing rolls,pneumatically separated.
2.Wallboard rack and Machine running stability and extremely good and fast.
3.Pneumatic jumbo roll loading,pneumatic paper driving,stepless speed additionstment,and web tension control.
4.Equipped with roots type vacuum pump for stable running of the machine.
5.Make various products width as requirement.
6.Equipped with edge embossing unit to keep the plise together.
7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.
8.The web can be threaded on the machine by the two jog buttons,It's more safer and easier to thread the web.
1. Specification of Facial Tissue Folding Machine:
| Machine Model | SYM-190/6L (Other size to be specified) |
| Finished Products Unfolded Size | 95x(120-210)x2mm |
| Folding Products Size | 190x(120-210)x2mm |
| Raw Material Width | 1260mm |
| Raw Material Diameter | 1200mm |
| Raw Material Core Diameter | 76.2mm |
| Output Capacity (8 hours) | 2000-3000kg |
| Embossing Unit | Steel to rubber |
| Edge Embossing | Steel to steel edge embossing, independent pneumatic regulation |
| Slitting Unit | Pneumatic slitting |
| Main Servo Moter Power | 5.5kw |
| Unwind Frequency Motor Power | 1.5kw (2 units) |
| Vacuum System | 18.5 kw Vacuum pump (Taiwan Roots blower) |
| Pneumatic System | 3HP air compressor,Min. pressure 5kg/cm2PA (Provider by user themselves) |
| Driving System | Timing belt |
| Dimension | 5870x2800x2207mm |
| Weight | About 5 tons |
2. Specification of Single Channel Log Saw Cutting Machine:
| Designation | Parameter values |
| The length of the none cut off facial tissue | minimum 500mm |
| The Height of tissue | 30~130mm |
| Machine Speed | 20~150cut/min |
| Operating speed | 20~120cut/min |
| Round blade outer diamete | Φ610mm |
| Paper cutting circular knife top speed | 980R/min |
| Finished products specification | 70~300mm |
| Paper width | 70~110mm |
| Cutting Length | 70~300mm |
| Left-over Length | 20~65mm |
| Power | 11KW |
| Power supply | 380V 50Hz |
| Air source | 0.5~0.8MPa |
| Machine Size | 4600*1700*2500mm |
| Weight of machine | 2300~2600kg |
| Brake | Parameter setting (auto/manual) |
| Stepping sharpening knife | Parameter setting (auto) |
| Pneumatic sharpening knife | Parameter setting (auto/manual) |
| Blow air | without |
| The total pressure switch | Value (not) |
| Human-computer interface | DELTA |
| Frequency changer | |
| Servo Drive | DELTA |
3. Specification of Facial Tissue Packing Machine:
1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.
| Tissue sizes: | L: 150-400mm W: 150-200mm H: 35-150mm |
| Packing speed: | 40-70 bags/min |
| Air supply: | 0.5-0.8MPa |
| Machine weight: | 3300kg |
| Outer dimensions (LxWxH): | 5885x3560x1925(mm) |
| Heating power: | 3.6kw |
| Motor power: | 3.6kw |
| Packing size: | ≤230x190x100(mm) |
| Working noise: | ≤78dB |
| Packing film: | CPP |
| Power supply type: | 380V, 50Hz |
4.Specifications of Semi Automatic Two Outlets Multi Bags Packing Machine:
| Packing Size | ≤500x300x110mm (LxWxH) |
| ≥220x120x90mm (LxWxH) |
| Packing Speed | 10-20 bag/min |
| Gas Pressure | 0.5mpa-0.8mpa |
| Voltage & Frequency | 380V,50Hz,3Phase |
| Total Power | 0.8kw |
| Weight | 1000kg |
| Overall Dimension | 4900x1650x1280mm |
| Tissue paper bag (one row/two rows) | Tissue paper bag (one row/two rows) |
Packing & Delivery
Our Company

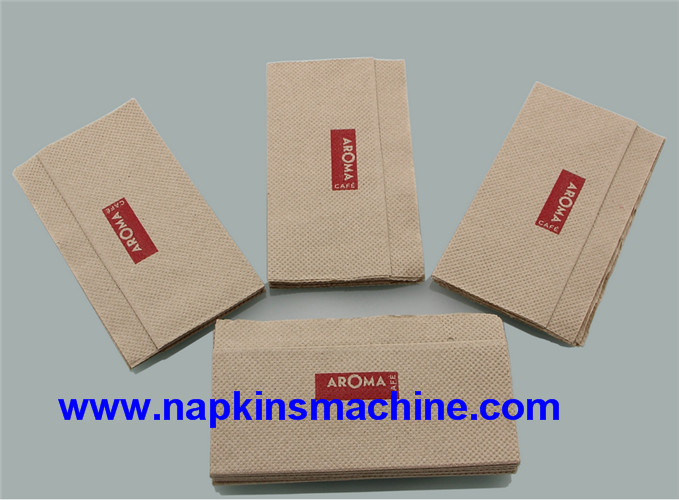

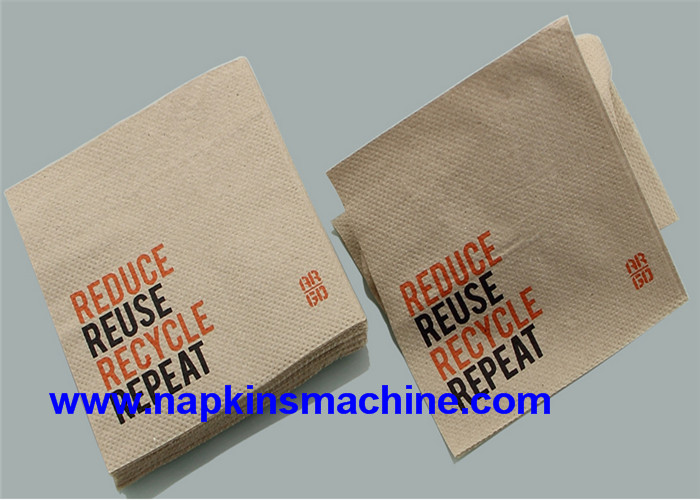

Feature
1. Speed: 3000sheets/min
2. Folding Type: 1/4 and 1/8 or 1/6 or M fold or Two folding Type
3. Embossing: steel to steel or steel to paper.
4. Lamination: Point to Point or Nested
5. Glue: Henkel Glue
6. Color Printing: Two color printing
7. Printing Model: Flexo Printing
8. Printing Ink: Water-Based Ink
9. Printing Plate Material: Aniline Plate
10. Important parts Bearing: NSK(Japan)
11. Important parts Steel: SKD(Japan)
12. PLC: Delta
13. Frequency Converter Delta
14. Pneumatic Parts AIRTAC
15. Photoelectrical switch (magic eye) German SICK
16. Anilinox Roller for Printing Unit: Ceramic one 300 lines
17. Motor: SIEMENS
18. Pneumatic Parts AIRTAC
19. Photoelectrical switch (magic eye) Omron
20. 300 Lines ceramic roller
21. 20mm thickness wall board plate for back stand
22. 40mm thickness wall board plate for embossing unit and color printing unit
23. 30 mm thickness wall board plate for cylinder folding parts
24. Max outer Dia. Of raw paper 1200mm
25. Inner Dia. Of raw paper core 3’’
26. Tissue Material: one ply:17-26g/s2 Two ply:16-22g/s2
Parameter
| Open size of finished product | 200*200-430*430mm (to be specified) |
| Diameter of Raw Paper Roll | 1100mm(other size to be specified) |
| Inner Diameter of Paper core | 76.2mm(3 inch) (other size to be specified) |
| Capacity | 3000pieces/min |
| Counting Device | Electronic Counting |
| Embossing Roller | Woolen Roller |
| Power | Frequency Conversion Speed Regulator |
| Calendaring | Steel to steel or steel to rubber |
| Embossing unit | Felted roller, woolen roller, Rubber roller |
| Color Printing | 1-2 color |
| Dry Device | Hot Wind Heating System |
Export Details
1. Delivery time: 60 days
2. Load port: Shenzhen Port(China)
3. Packing: In standard export wooden cases
4. Container: 1 x 20 feet container (It depends on the quantity of the machines).
5. Machine installation and operation training: The seller should dispatch professional technicians and engineers to buyer’s plant to install the machine and train the workers. The round air ticket, accommodation and salary should be paid by buyer.
6. Warranty period: One year(Except easy damaged parts), and will provide long term services including providing spare parts at low price and will heart and soul help the buyer to solve any problem may occur.
Introduction of main parts
Raw Paper
(1) Size:Diameter<1000mm
(2) Material:13-15g/m22 ply,18-22g/1 ply
(3) Inner Diameter:76.2mm
(4) Folding Size:The Buyer Offers the Sample
Paper-feeding part
(1)One Layer and Belt to deliver paper and controlled by Pump;
(2)Raw Paper Manual Adjustment;
Embossing Part
(1)One unit steel to woolen Roller(Patter get confirmation from the buyer)
(2)Mechanical pressure control
(3)cotton cloth and paraffin oil Cleaning Device
Folding Part
(1)Leading Paper Roll Function, the folding tension of the fore part adjustable
(2)Counting Device: Pneumatic dislocation type
(3)Capacity:0-800pieces/min/line
Control Unit
(1)Frequency Conversion Device
(2)Automatic Counting Function
(3)Emergency Device
(4)Voltage:AC380V 50HZ Main Motor 2.2KW,
(5)Air pressure required less than 0.5 MPA(Supplied by the user)
Spare Part
| No | Items | Quantity (piece) |
| 1 | Male inserter knife | 2 |
| 2 | Band Saw | 6 |
| 3 | grinding wheel | 5 |
| 4 | One tool box | 1 |
Electrical Parts and other Parts brand
| NO | Name | Brand | Original Place |
| 1 | Frequency Converter | Delta | Taiwan |
| 2 | Motor | Siemens | Germany |
| 3 | Pneumatic Parts | Airtac | Germany |
| 4 | Knife bearing | NSK | Japan |
| 5 | Steel | SKD | Japan |
