High Speed Tissue Jumbo Roll Slitting Machine / Paper Slitter
Rewinder Machine
Description
Jumbo Roll Bath Tissue Slitting Rewinding Machine for Maxi 3500mm
Width is to perforate and cut the raw paper into various sizes according
to the requested.The finished product is neat, in good order and with equality
tension.It has the feature of compact structure, easy and stable operation,
less electricity consumption and covers a small area of 8.4 m². The
highest production speed is 120-160m/min.
This equipment is adjustable to meet the requested finished
product. This model is the ideal equipment for paper making factory
and paper processing factory. This equipment can process raw paper
of 1.75m(75B type) in width. There are two types of this model:
A) is ordinary type, it used one embossed unit for 2 ply paper,
B) other is dot-by-dot type, it used embossed units respectally for
each one.
This machine is consist of stand of raw material, paper conveying
unit, embossing unit, perforating unit, rolling unit, electricity
control and cutting system.
Specification
| Model | 1092B | 1575B | 2000B | 2200B | 2400B | 2600B | 2800B |
| Width of raw material | 1200mm | 1750mm | 1950mm | 2150mm | 2350mm | 2550mm | 2750mm |
| Dia.of finished product ¢60-150mm(the tension is adjustable) |
| Dia.of core of finished product ¢20-50(core and coreless) |
| Dia.of raw material | 1200mm(can accept customers’ requirement) |
| Thickness of raw material 14g/m2-20g/ m2 |
| Dia of core of raw material ¢76.2mm |
| Perforation distance | 4 knifes 100-150mm(other specifications, please point ) |
| Reeling speed | 150-200m/min |
| Parameter setting | Touch screen man-computer interface operation system |
| PLC | PLC |
| Raw material holder | 2 layers(3layer, please order) |
| Pneumatic system | Pressure 5kg/cm2pa( prepared by customers) |
| Power | 5.5-13kw |
| Overall Dimension (LXWXH): 6100X2650X1800-6100X4050X1800mm |
| Weight | 3.5-7T |
| Embossment | Single embossment, two side embossment and steel to steel
embossing(depend on selection) |
|
| Embossment bottom roller: Felt roller, wool roller and rubber
roller (depend on selection) |
Functions and Features
1. The transducer independent driver is used in the main motor;
2. The cutting knife automatically stops and gives an alarm;
3. When the paper can not be cut down, the equipment will stop and
ask you to set the cutting depth.
4. The high precision servo system is used in the feed motor servo
system, to ensure the quality of the finished product;
5. The equipment automatically calculate the quantity of the
finished product being cut; according to the raw material and the
length of the finished product;
6. When data input is incorrect, the equipment breaks off and
prompts to adjust on the interface;
7. Cut with knife is used in the equipment, which reduce the use
cost of the user;
8. The automatic sharpening knife system is used in the equipment,
can adjust the sharpening knife system according the requirement of
paper being cut, which increase the cutting life;
9. The sharp steel wheel is used in the sharpening knife system,
which increase the sharpening knife efficiency
10. The thickness of paper core should be less 3mm

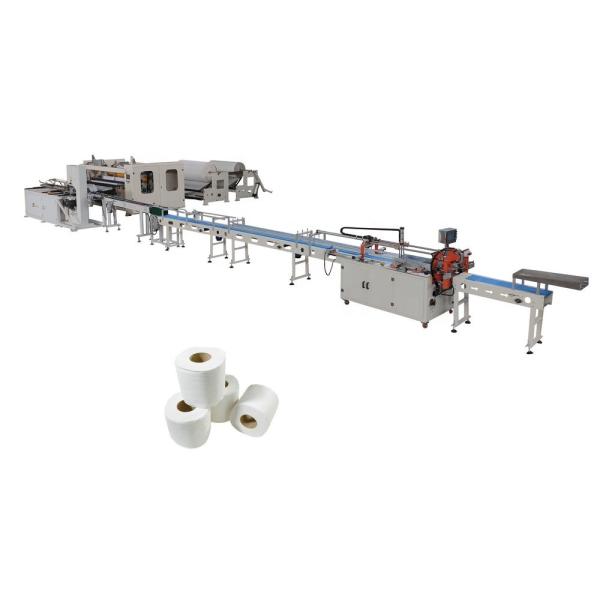

Factory Sale Low Price Tissue Paper Production Line Toilet Paper
Making Machine For Sale
Features:
Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is
for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core.
Raw material from jumbo roll after full embossing or edge
embossing, then perforation, end cutting and spray the tail glue
become a log. Then it can working with cutting machine and packing
machine to become the finished products. The machine is controlled
by PLC, people operate it through touch screen, the whole process
is automatic, easy to operate, lower the man cost. And Our machine
can special-made according to clients' requirements.
Model | 1092B | 1575B | 1760B | 2150B | 2200B | 2500B | 2800B |
Jumbo Roll Max. width | 1350mm | 1750mm | 1880mm | 2000mm | 2150mm | 2400mm | 2750mm |
Max. Jumbo Roll diameter
| 2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2 |
Jumbo Roll Standings
| Standardφ3"(76.2mm) (Other sizes specified)
|
Data setting
| HMI |
Programming controller
| PLC, touch screen
|
Operate Speed
| 0-230m/min 15000-25000 rolls/8hours |
Finished Log Outer dia. | φ90-140mm |
Finished Log Inner dia. | φ38-76mm |
Perforation Distance | 100-150mm |
Mechanical driving
| Driving by Stepless gear box
|
Air -system
| 3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
|
Main driving
| Frequency conversion speed regulation 7.5-15KW 380V,50HZ
|
Embossing unit
| Steel to rubber
|
Dimensions | 6x3x1.7 (length x width x height);(m)
|
Weight | 3T-4T(depends on the Model you have )
|
Options: | |
Embossment Roller | Plane, Single Set, Double Sets Can be ordered |
Color Printing Unit
| 1-2 Colors can be order
|
Lamination Unit
| Can be Ordered
|
Edge-Embossing Line
| Steel to Steel Operate by Pneumatic
|
Deco Color Lamination Parts:
