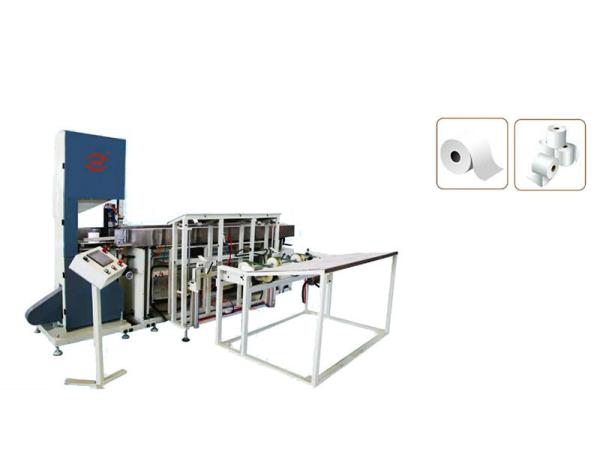

2.5KW 2700mm Length Paper Slitter Rewinder Machine / Toilet Paper
Roll Cutting Machine
Description
2.5KW 2700mm Length Paper Slitter Rewinder Machine / Toilet Paper
Roll Cutting Machine is using PLC program control,big screen true color human computer
interface. Theprecise servo control feed length, electromechanical
integration control and other international advanced technology con
automatically detect each key action,has good fault information
prompt system, make the whole production line achieving the best
working state.
Specification
| Voltage | AC380V 50Hz(or to be order) |
| Power | 4KW |
| Current | 8A |
| Band saw speed | 1500r/min |
| Speed | 50-60rolls/min |
| Cutting size | 50-130mm |
| Noise | 65dB(A) |
| Air consumption | 0.6MPa |
| Machine size | L:3000mm |
| W:3400mm |
| H:2200mm |
| Machine weight | 1500kg |
Main Feature
1. The transducer independent driver is used in the main motor;
2 . The cutting knife automatically stops and gives an alarm;
3 . When the paper can not be cut down,the equipment will
4 . The high precision servo system is used in the feed motor servo
system,to ensure the quality of the finished product
5 . The equipment automatically calculate the quantity of the
finished product being cut;according to the
6 . The cut paper head and paper end can be automatically sorted;
7 . Cut with knife is used in the equipment,which reduce the use
cost of the user;
8 . The automatic sharpening knife system is used in the
equipment,can adjust the sharpening knife system according the
requirement of paper being cut,which increase the cutting life;
9 . The sharp steel wheel is used in the sharpening knife system,
which increase the sharpening knife efficiency
Factory Sale Low Price Tissue Paper Production Line Toilet Paper
Making Machine For Sale
Features:
Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is
for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core.
Raw material from jumbo roll after full embossing or edge
embossing, then perforation, end cutting and spray the tail glue
become a log. Then it can working with cutting machine and packing
machine to become the finished products. The machine is controlled
by PLC, people operate it through touch screen, the whole process
is automatic, easy to operate, lower the man cost. And Our machine
can special-made according to clients' requirements.
Model | 1092B | 1575B | 1760B | 2150B | 2200B | 2500B | 2800B |
Jumbo Roll Max. width | 1350mm | 1750mm | 1880mm | 2000mm | 2150mm | 2400mm | 2750mm |
Max. Jumbo Roll diameter
| 2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2 |
Jumbo Roll Standings
| Standardφ3"(76.2mm) (Other sizes specified)
|
Data setting
| HMI |
Programming controller
| PLC, touch screen
|
Operate Speed
| 0-230m/min 15000-25000 rolls/8hours |
Finished Log Outer dia. | φ90-140mm |
Finished Log Inner dia. | φ38-76mm |
Perforation Distance | 100-150mm |
Mechanical driving
| Driving by Stepless gear box
|
Air -system
| 3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
|
Main driving
| Frequency conversion speed regulation 7.5-15KW 380V,50HZ
|
Embossing unit
| Steel to rubber
|
Dimensions | 6x3x1.7 (length x width x height);(m)
|
Weight | 3T-4T(depends on the Model you have )
|
Options: | |
Embossment Roller | Plane, Single Set, Double Sets Can be ordered |
Color Printing Unit
| 1-2 Colors can be order
|
Lamination Unit
| Can be Ordered
|
Edge-Embossing Line
| Steel to Steel Operate by Pneumatic
|
Deco Color Lamination Parts:
