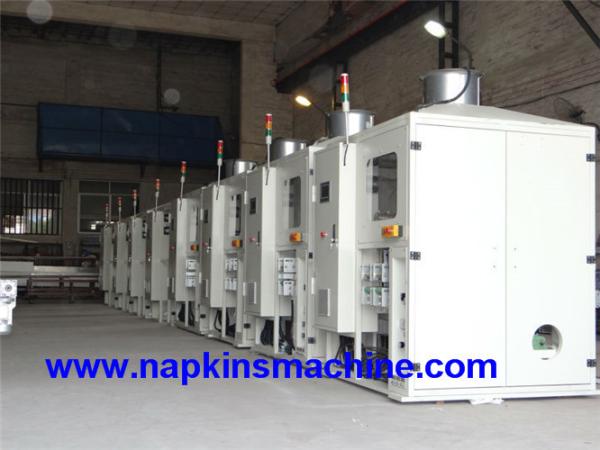

High Precision Log Saw Cutting Machine , Two Channel Paper Roll
Cutter Machine
Description
Full Automatic Paper Roll Cutting Machine Two Channel 120 Cuts Per
Min is used to cut tissue paper. It is operated by using PLC program
control, big screen true color human-computer interface. The
precise servo control feed length, electromechanical integration
control and other international advanced technology con
automatically detect each key action, has good fault information
prompt system, make the whole production line achieving the best
working state.
Specification
Main Technical Parameter |
Log length | 1500mm~2700mm |
Log outside diameter | 90mm~150mm (standard size: 110±5mm) |
Cutting length | variable |
Machine speed | 160 cuts/min, 2 rolls /cut |
Operation speed | 150 cuts/min, 2 rolls /cut |
Blade outside diameter | 610mm |
Installed power | Alternating Current: 5 Horses per Machine |
Frequency Conversion | 5 Horses per Machine |
Alternating Current | 1/2 Horses per Machine, AC motor 5 Horses |
Function & Assemble Parts
1. Equip with programmable controller to auto control production.
Auto reset, push roll, the cutting length of each roll with
adjustable and controllable cutting lifetime period.
2. Equip man-machine interface to control the operation with
production parameter and breakdown displaying on the screener.
3. Adopt photoelectric inspecting unit and servo driving unit.
Electric components and bearing are best quality.
4. It is equipped with auto supplying grinding unit with high
accuracy of grinding and safe guarantee.
Main Technical Parameter
1. Length of jumbo roll: 1200-2800mm
2. Paper roll diameter: Φ90mm-Φ150mm(standard size:110±5mm)
3. Production speed: cutting times is 80 to 100 rolls per minute ;
4. Machine Power: 10KW (380V 50HZ)
5.Equipment Over Size (L×W×H): 6.9×1.72×1.92M
6. Weight: About 2 tons
7.Cutting length:60-300mm (length is changeable, servo control)
8.Error of finished product:±1mm
Features:
Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is
for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core.
Raw material from jumbo roll after full embossing or edge
embossing, then perforation, end cutting and spray the tail glue
become a log. Then it can working with cutting machine and packing
machine to become the finished products. The machine is controlled
by PLC, people operate it through touch screen, the whole process
is automatic, easy to operate, lower the man cost. And Our machine
can special-made according to clients' requirements.
Model | 1092B | 1575B | 1760B | 2150B | 2200B | 2500B | 2800B |
Jumbo Roll Max. width | 1350mm | 1750mm | 1880mm | 2000mm | 2150mm | 2400mm | 2750mm |
Max. Jumbo Roll diameter
| 2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2 |
Jumbo Roll Standings
| Standardφ3"(76.2mm) (Other sizes specified)
|
Data setting
| HMI |
Programming controller
| PLC, touch screen
|
Operate Speed
| 0-230m/min 15000-25000 rolls/8hours |
Finished Log Outer dia. | φ90-140mm |
Finished Log Inner dia. | φ38-76mm |
Perforation Distance | 100-150mm |
Mechanical driving
| Driving by Stepless gear box
|
Air -system
| 3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
|
Main driving
| Frequency conversion speed regulation 7.5-15KW 380V,50HZ
|
Embossing unit
| Steel to rubber
|
Dimensions | 6x3x1.7 (length x width x height);(m)
|
Weight | 3T-4T(depends on the Model you have )
|
Options: | |
Embossment Roller | Plane, Single Set, Double Sets Can be ordered |
Color Printing Unit
| 1-2 Colors can be order
|
Lamination Unit
| Can be Ordered
|
Edge-Embossing Line
| Steel to Steel Operate by Pneumatic
|
Deco Color Lamination Parts:
