Hand Towel Jumbo Roll Slitting And Rewinding Machine For Folding
Tissue / Napkin
Description

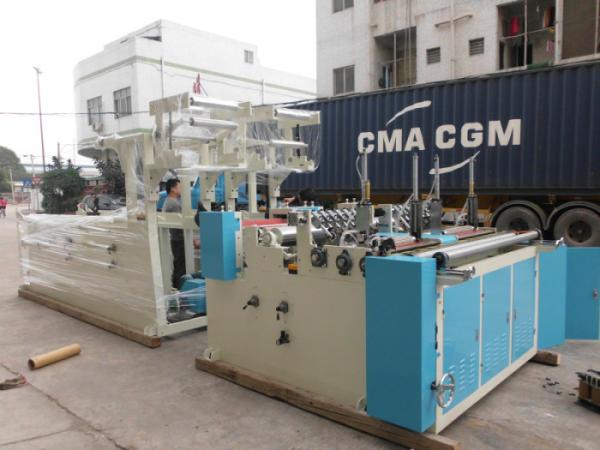

Center Pull Hand Towel Jumbo Roll Slitting And Rewinding Machine
rewind and cut single layer jumbo roll to 2 layers or 3 layers
different specification raw material.
Supply for folding tissue ,napkin , boxed tissue and so on.
This equipment has the feature of tight structure, easy operation,
stable operation.
Specification
Model | 1092/1575/1760/2500/2900 |
Max width of raw paper | 1350/1750/2000/2400/2800 mm, other sizes to be specified |
Max outer diameter of raw paper | 1100 mm, other sizes to be specified |
Inner diameter of raw paper core | 3",76 mm, other sizes to be specified |
Outer diameter of finished product | 90-420 mm, other sizes to be specified |
Product diameter control | electric/pneumatic |
Speed | 0~250m/min |
Operation speed | 0~230m/min |
Power | 4~22kw varial frequency speed regulating |
Winding | Auxiliary rewinding shaft |
Brake | electric&pneumatic control |
Pneumatic system | 4HP air compressor, which the min pressure is 5kg/cm2pa(supplied by user) |
Perforating blade | 4 pcs spiral blades |
Perforating Size | 110(±3mm) |
Dimension and weight | depends on model and configuration |
Options | Options |
*Adjustable perforating Size | 4 blades: 90-140mm 2 blades: 200-350mm 1 blade: 200-500mm (+-3mm) , to be specified |
*Backstand | 1~4ply (plies), to be specified |
*Embossing | single embossing, double embossing, steel to steel (point to point/convex to plane), steel to felted , steel to paper woolen , steel to rubber , pneumatic, to be specified |
Functions and Features
1. Horizontal type unwinding stands: pneumatic wide belt to feed
paper, each jumbo roll has
independent tension adjustor and left-right adjusting device.
2. Pneumatic lifting the jumbo roll function greatly lightens the
labor intensity of the workers.
3. Auto stop machine function when material is used up will
minimize the waste of raw material.
4. Continue adding roll core alarming device.
5. Rewinding Technology: The finished products from earlier
loosening to later tightening when rewinding, which has solved the
problem of the separation phenomenon between roll paper and roll
core of the finished product after long time’s storage. High speed
rewinding can reach the speed of 180-200m/min,that is to say, it
can push out the log after rewinding in 8-12 seconds.( perforating
distance is 110mm, the sheet number set as 200, it is complete the
rewinding process in 14 seconds).
6. Auto edge trimming, glue spraying and sealing synchronously in
one time.
7. Use the up-threading way to winding the finished product. Adopts
front and back jogging button to guide paper,
8. Double Embossment, compare with Single embossment, this type can
make the paper
softer, both sides of the finished products have the same effect,
and when making the
product with the same diameter, the weight can reduce by over 15%.
9.Glue lamination system:
A: When produce kithchen towel rolls : glue on the convex face of
the embossed tissue, and stick the two ply of tissue together.
B: When produce colorful rolls,to apply colorful glue between two
and three ply of tissues,to make the tissue surface show various
kinds of colorful patterns (the pattern as per the embosser’
pattern) ,and the tissue will stick together without destroy
tissue’s softness.
Factory Sale Low Price Tissue Paper Production Line Toilet Paper
Making Machine For Sale
Features:
Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is
for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core.
Raw material from jumbo roll after full embossing or edge
embossing, then perforation, end cutting and spray the tail glue
become a log. Then it can working with cutting machine and packing
machine to become the finished products. The machine is controlled
by PLC, people operate it through touch screen, the whole process
is automatic, easy to operate, lower the man cost. And Our machine
can special-made according to clients' requirements.
Model | 1092B | 1575B | 1760B | 2150B | 2200B | 2500B | 2800B |
Jumbo Roll Max. width | 1350mm | 1750mm | 1880mm | 2000mm | 2150mm | 2400mm | 2750mm |
Max. Jumbo Roll diameter
| 2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2 |
Jumbo Roll Standings
| Standardφ3"(76.2mm) (Other sizes specified)
|
Data setting
| HMI |
Programming controller
| PLC, touch screen
|
Operate Speed
| 0-230m/min 15000-25000 rolls/8hours |
Finished Log Outer dia. | φ90-140mm |
Finished Log Inner dia. | φ38-76mm |
Perforation Distance | 100-150mm |
Mechanical driving
| Driving by Stepless gear box
|
Air -system
| 3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
|
Main driving
| Frequency conversion speed regulation 7.5-15KW 380V,50HZ
|
Embossing unit
| Steel to rubber
|
Dimensions | 6x3x1.7 (length x width x height);(m)
|
Weight | 3T-4T(depends on the Model you have )
|
Options: | |
Embossment Roller | Plane, Single Set, Double Sets Can be ordered |
Color Printing Unit
| 1-2 Colors can be order
|
Lamination Unit
| Can be Ordered
|
Edge-Embossing Line
| Steel to Steel Operate by Pneumatic
|
Deco Color Lamination Parts:
