200 m / Min 380V Automatic Roll Slitter Rewinder / Tissue
Manufacturing Machine
Description

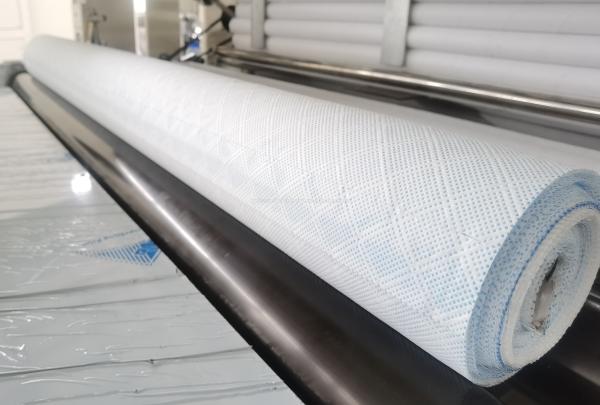

200 m / Min 380V Automatic Roll Slitter Rewinder / Tissue
Manufacturing Machine is mainly used for rewinding the jumbo roll into two-layer or
three-layer toilet paper.
This rewinding take advanced PLC computer programming technology,
frequency control, electric brake and equip with touch screen
man-machine interface operating system. System upgrades and
realizes rewinding paper without core. Application of PLC computer
programming technology can get effect of rewinding toilet paper
without core and steel tube. It has function of automatic
rewinding, automatic glue, trimming, put welled roll out and
flatten. New design, perfect matching, let rewinding machine
comprehensive upgrade to meet the demand of the markets; the
technical application is faster and more convenient.
Specification
Model | 1092/1575/1760/2500/2900 |
Max width of raw paper | 1350/1750/2000/2400/2800 mm, other sizes to be specified |
Max outer diameter of raw paper | 1100 mm, other sizes to be specified |
Inner diameter of raw paper core | 3",76 mm, other sizes to be specified |
Outer diameter of finished product | 90-420 mm, other sizes to be specified |
Product diameter control | electric/pneumatic |
Speed | 0~250m/min |
Operation speed | 0~230m/min |
Power | 4~22kw varial frequency speed regulating |
Winding | Auxiliary rewinding shaft |
Brake | electric&pneumatic control |
Pneumatic system | 4HP air compressor, which the min pressure is 5kg/cm2pa(supplied by user) |
Perforating blade | 4 pcs spiral blades |
Perforating Size | 110(±3mm) |
Dimension and weight | depends on model and configuration |
Options | Options |
*Adjustable perforating Size | 4 blades: 90-140mm 2 blades: 200-350mm 1 blade: 200-500mm (+-3mm) , to be specified |
*Backstand | 1~4ply (plies), to be specified |
*Embossing | single embossing, double embossing, steel to steel (point to point/convex to plane), steel to felted , steel to paper woolen , steel to rubber , pneumatic, to be specified |
Functions and Features
1. Winding with air shaft.
2. Unwind stand: jumbo reel is pneumatic unwinding , with manually
paper tension adjusting
unit and lateral adjusting unit for each jumbo reel.
3. Pneumatic loading of jumbo reel can greatly reduce the working
tension.
4. *Edge-embosser unit: Individual pneumatic-controlled embosser
bearing,
with high-hardness bottom roller.
5. *Automatic tail-trimming and sealing unit: the trimming,
gluing and sealing can be synchronized done.
Factory Sale Low Price Tissue Paper Production Line Toilet Paper
Making Machine For Sale
Features:

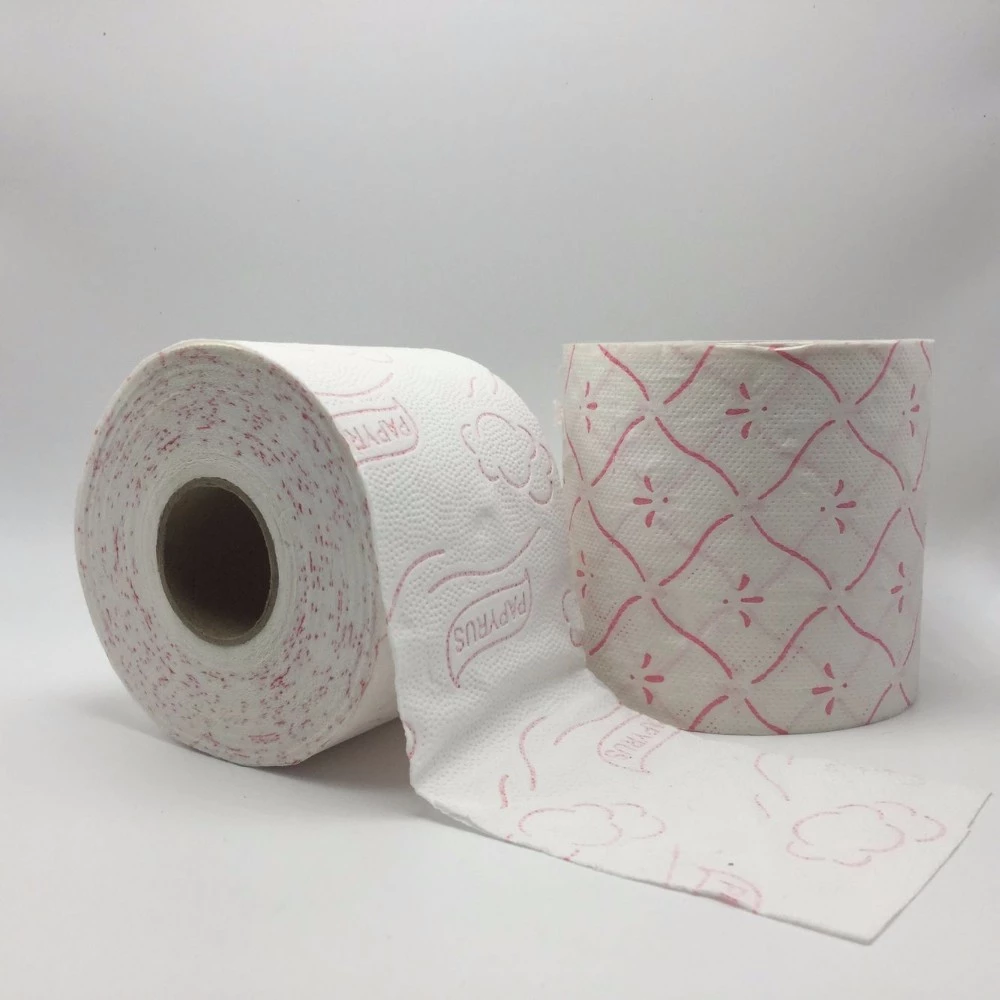

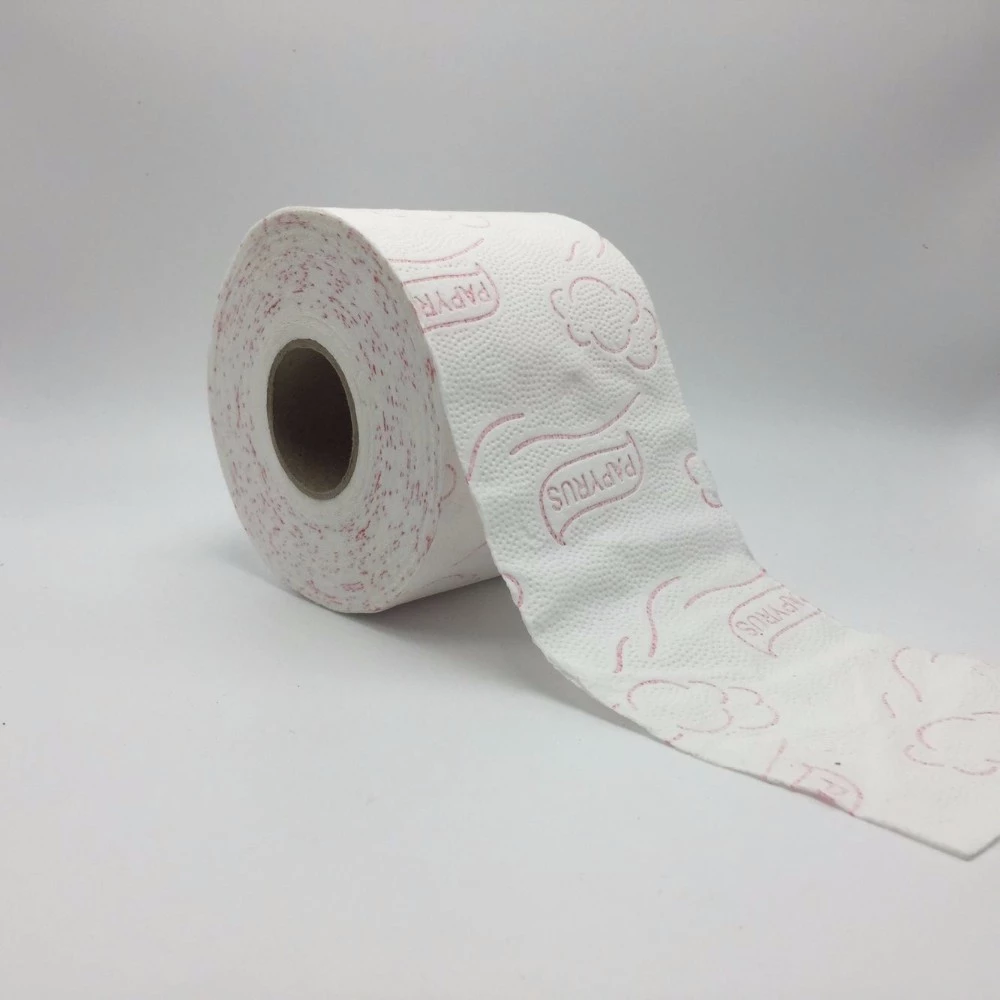

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is
for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core.
Raw material from jumbo roll after full embossing or edge
embossing, then perforation, end cutting and spray the tail glue
become a log. Then it can working with cutting machine and packing
machine to become the finished products. The machine is controlled
by PLC, people operate it through touch screen, the whole process
is automatic, easy to operate, lower the man cost. And Our machine
can special-made according to clients' requirements.
Model | 1092B | 1575B | 1760B | 2150B | 2200B | 2500B | 2800B |
Jumbo Roll Max. width | 1350mm | 1750mm | 1880mm | 2000mm | 2150mm | 2400mm | 2750mm |
Max. Jumbo Roll diameter
| 2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2 |
Jumbo Roll Standings
| Standardφ3"(76.2mm) (Other sizes specified)
|
Data setting
| HMI |
Programming controller
| PLC, touch screen
|
Operate Speed
| 0-230m/min 15000-25000 rolls/8hours |
Finished Log Outer dia. | φ90-140mm |
Finished Log Inner dia. | φ38-76mm |
Perforation Distance | 100-150mm |
Mechanical driving
| Driving by Stepless gear box
|
Air -system
| 3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
|
Main driving
| Frequency conversion speed regulation 7.5-15KW 380V,50HZ
|
Embossing unit
| Steel to rubber
|
Dimensions | 6x3x1.7 (length x width x height);(m)
|
Weight | 3T-4T(depends on the Model you have )
|
Options: | |
Embossment Roller | Plane, Single Set, Double Sets Can be ordered |
Color Printing Unit
| 1-2 Colors can be order
|
Lamination Unit
| Can be Ordered
|
Edge-Embossing Line
| Steel to Steel Operate by Pneumatic
|
Deco Color Lamination Parts:
