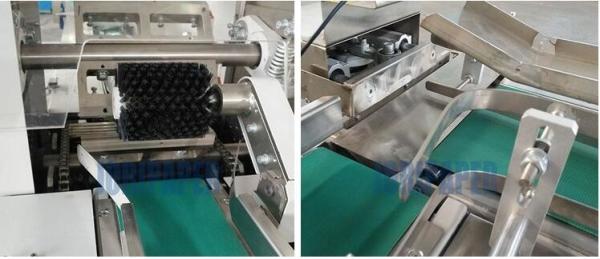

Automatic Single Toilet Roll Packing Machine For Plastic Soft Bag Wrapping
Description
Full Automatic Single Toilet Roll Packing Machine For Plastic Soft Bag Wrapping is suitable for packing rectangular and square objects, such as non-highly tight tissue, square tissue,
napkins, etc.
And the length of product adopt double frequency converter, stepless speed change, various range adjustment,, automatic clear up the packing product, and make it enter packaging machine.
This machine can match with front-end production very well. The length of finished bag will be accurate tracked by high sensitivity sensor. It will not need to adjust by manual as soon as set. Individual control temperature for each sealing.It suitable for many kind of wrapping material.
Specification
| End sealers diameter (mm) | 114 |
| Packing speed (pack/min) | 35-120 |
| Film width (mm) | 430/330 |
| Bagging size range | Roll diameter | 113/93 |
| | Bagging length | adjustable |
| Total Power k) | 3.2 |
| Main motor power (kw) | 0.75+0.2 |
| Net weight (k) | 900 |
| Noise (dB) | ≤78dB |
| Percentage of pass (%) | ≥97% |
| Sealing pressure (N/mm²) | 15 |
| Outer dimensions (L×W×H) (mm) | 4240x1005x1750 |
| Power supply type | 220V 50HZ |
| Packing material | BOPP,PE/OPP,CPP, PP |
| Packing material thickness | 0.020-0.035 (mm) |
Main functions
1. Capacity: 50 to 80 packs/minute (subject to the material and thickness of film as well as product size)
2. Product size limits:
Length: 70 to 400mm, Width: 32 to 200mm, Height: 5 to 105mm
3. Floor space (L x W): packaging machine 4400 x 1085mm
4. Power consumption: packaging machine 2.8kw
5. Total weight: Packaging machine 1200kg
6. Packing material: all kinds of film such as PVC, CPP and OPP
Electric Assembly Parts
| |
| No | Part name | Brand | Remarks |
| 1 | Main control panel | Soontrue | |
| 2 | Inverter | Panasonic | 1.5kw |
| 3 | Inverter | Panasonic | 0.4kw |
| 4 | Solid relay | Shanghai Chaocheng | |
| 5 | Power switch | FUJI | 30A |
| 6 | Photocell | SUNX | |
| 7 | Touch screen | HITECH | |
| 8 | Temp. controller | OMRON | |
| 9 | Motor | VTV | |
| 10 | Bearing | NSK |
Product Description
High Quality Facial Tissue Machine Paper Product Making Machinery
Features:
Facial tissue making machine working flow:The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.
This machine adopts independent servo motor drive,and automatic paper tension control automatic marking functings.It featurse of high speed,nice folding and easy operation.
1.Can order steel to rubber embossing rolls,pneumatically separated.
2.Wallboard rack and Machine running stability and extremely good and fast.
3.Pneumatic jumbo roll loading,pneumatic paper driving,stepless speed additionstment,and web tension control.
4.Equipped with roots type vacuum pump for stable running of the machine.
5.Make various products width as requirement.
6.Equipped with edge embossing unit to keep the plise together.
7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.
8.The web can be threaded on the machine by the two jog buttons,It's more safer and easier to thread the web.
1. Specification of Facial Tissue Folding Machine:
| Machine Model | SYM-190/6L (Other size to be specified) |
| Finished Products Unfolded Size | 95x(120-210)x2mm |
| Folding Products Size | 190x(120-210)x2mm |
| Raw Material Width | 1260mm |
| Raw Material Diameter | 1200mm |
| Raw Material Core Diameter | 76.2mm |
| Output Capacity (8 hours) | 2000-3000kg |
| Embossing Unit | Steel to rubber |
| Edge Embossing | Steel to steel edge embossing, independent pneumatic regulation |
| Slitting Unit | Pneumatic slitting |
| Main Servo Moter Power | 5.5kw |
| Unwind Frequency Motor Power | 1.5kw (2 units) |
| Vacuum System | 18.5 kw Vacuum pump (Taiwan Roots blower) |
| Pneumatic System | 3HP air compressor,Min. pressure 5kg/cm2PA (Provider by user themselves) |
| Driving System | Timing belt |
| Dimension | 5870x2800x2207mm |
| Weight | About 5 tons |
2. Specification of Single Channel Log Saw Cutting Machine:
| Designation | Parameter values |
| The length of the none cut off facial tissue | minimum 500mm |
| The Height of tissue | 30~130mm |
| Machine Speed | 20~150cut/min |
| Operating speed | 20~120cut/min |
| Round blade outer diamete | Φ610mm |
| Paper cutting circular knife top speed | 980R/min |
| Finished products specification | 70~300mm |
| Paper width | 70~110mm |
| Cutting Length | 70~300mm |
| Left-over Length | 20~65mm |
| Power | 11KW |
| Power supply | 380V 50Hz |
| Air source | 0.5~0.8MPa |
| Machine Size | 4600*1700*2500mm |
| Weight of machine | 2300~2600kg |
| Brake | Parameter setting (auto/manual) |
| Stepping sharpening knife | Parameter setting (auto) |
| Pneumatic sharpening knife | Parameter setting (auto/manual) |
| Blow air | without |
| The total pressure switch | Value (not) |
| Human-computer interface | DELTA |
| Frequency changer | |
| Servo Drive | DELTA |
3. Specification of Facial Tissue Packing Machine:
1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.
| Tissue sizes: | L: 150-400mm W: 150-200mm H: 35-150mm |
| Packing speed: | 40-70 bags/min |
| Air supply: | 0.5-0.8MPa |
| Machine weight: | 3300kg |
| Outer dimensions (LxWxH): | 5885x3560x1925(mm) |
| Heating power: | 3.6kw |
| Motor power: | 3.6kw |
| Packing size: | ≤230x190x100(mm) |
| Working noise: | ≤78dB |
| Packing film: | CPP |
| Power supply type: | 380V, 50Hz |
4.Specifications of Semi Automatic Two Outlets Multi Bags Packing Machine:
| Packing Size | ≤500x300x110mm (LxWxH) |
| ≥220x120x90mm (LxWxH) |
| Packing Speed | 10-20 bag/min |
| Gas Pressure | 0.5mpa-0.8mpa |
| Voltage & Frequency | 380V,50Hz,3Phase |
| Total Power | 0.8kw |
| Weight | 1000kg |
| Overall Dimension | 4900x1650x1280mm |
| Tissue paper bag (one row/two rows) | Tissue paper bag (one row/two rows) |
