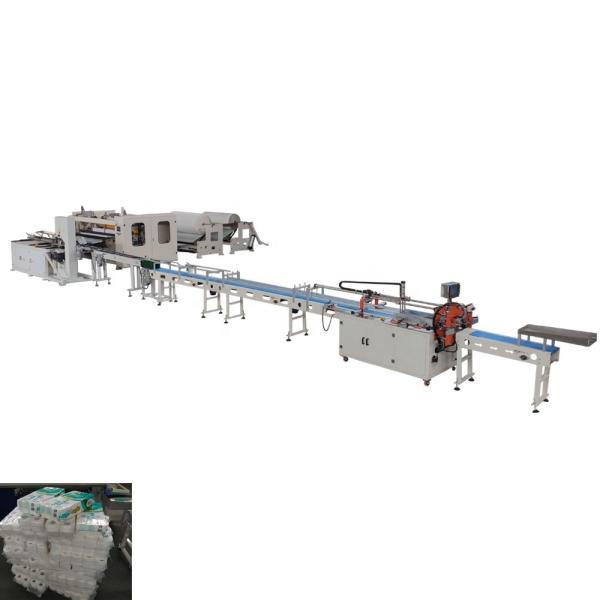

High Speed Toilet Roll Packing Machine for Single Toilet Roll
Wrapping
Description
High Speed Toilet Roll Packing Machine for Single Toilet Roll
Wrapping
is suitable for single toilet paper packaging.
The toilet roll packing machine has the combined function of
setting ,pronghorn, sealing.
The machine integrating photoelectric impressed processing equipment,
a new generation of toilet paper at first, has applied for national
patent.
The greatest characteristic of the machine is fully automatic
trimming, a complete sealing glue end, is a high efficiency, high
quality, low loss of toilet paper processing equipment, can deserve
to store paper wearing, and a large synthetic cyclotron cut unit
production line.
Specification
Tissue sizes | L: 100-230mm W: 100-150mm H:40-100mm |
Packing speed | 25-55 bags/min |
Air supply | 0.5-0.8MPa |
Machine weight | 3500kg |
Outer dimensions | 3560*5885*1925mm |
Heating power | 3.6kw |
Motor power | 5.4kw |
Max packing size | 230*150*100(mm) |
Working noise | ≤78dB |
Packing film | CPP with thickness of 40 microns |
Power supply type | 380V, 50Hz |
Main functions
1 . Auto arranging, aligning, caching, allocating, transporting,
packing, can be connected with toilet paper log cutting machine by
conveyor
2 . Microcomputer controller, the length of bag is adjustable,
3 . Human-machine interface, parameter setting is easy
4 . With self-protect system in case of breakdowns happen
5 . Breakdown self- diagnose, and display on the interface screen
6 . Machine pauses automatically in certain position when lacks of
toilet paper rolls, packaging film will not stick to knife and no
waste
7 . Fully automatic adjustment for packing film feeding system and
transverse cutting system,
8 . High sensibility Photoelectric detector for color label
tracing, set the position of sealing and cutting digitally
9 . Temperature independent PID control, suitable for each kind of
packaging material
10 . Driving system is simple and reliable for machine working, and
maintenance
11 . All controlling is programmable, which is convenient for
function adjustment and technical upgrading
12 . Packaging speed: 30~120rolls/per minute, auto start/stop by
sense, auto acceleration and deceleration according to rolls
transportation
Electrical Parts Brand
|
No | Part name | Brand | Remarks |
1 | Main control panel | Soontrue |
|
2 | Inverter | Panasonic | 1.5kw |
3 | Inverter | Panasonic | 0.4kw |
4 | Solid relay | Shanghai Chaocheng |
|
5 | Power switch | FUJI | 30A |
6 | Photocell | SUNX |
|
7 | Touch screen | HITECH |
|
8 | Temp. controller | OMRON |
|
9 | Motor | VTV |
|
10 | Bearing | NSK | |
Factory Sale Low Price Tissue Paper Production Line Toilet Paper
Making Machine For Sale
Features:
Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is
for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core.
Raw material from jumbo roll after full embossing or edge
embossing, then perforation, end cutting and spray the tail glue
become a log. Then it can working with cutting machine and packing
machine to become the finished products. The machine is controlled
by PLC, people operate it through touch screen, the whole process
is automatic, easy to operate, lower the man cost. And Our machine
can special-made according to clients' requirements.
Model | 1092B | 1575B | 1760B | 2150B | 2200B | 2500B | 2800B |
Jumbo Roll Max. width | 1350mm | 1750mm | 1880mm | 2000mm | 2150mm | 2400mm | 2750mm |
Max. Jumbo Roll diameter
| 2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2 |
Jumbo Roll Standings
| Standardφ3"(76.2mm) (Other sizes specified)
|
Data setting
| HMI |
Programming controller
| PLC, touch screen
|
Operate Speed
| 0-230m/min 15000-25000 rolls/8hours |
Finished Log Outer dia. | φ90-140mm |
Finished Log Inner dia. | φ38-76mm |
Perforation Distance | 100-150mm |
Mechanical driving
| Driving by Stepless gear box
|
Air -system
| 3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
|
Main driving
| Frequency conversion speed regulation 7.5-15KW 380V,50HZ
|
Embossing unit
| Steel to rubber
|
Dimensions | 6x3x1.7 (length x width x height);(m)
|
Weight | 3T-4T(depends on the Model you have )
|
Options: | |
Embossment Roller | Plane, Single Set, Double Sets Can be ordered |
Color Printing Unit
| 1-2 Colors can be order
|
Lamination Unit
| Can be Ordered
|
Edge-Embossing Line
| Steel to Steel Operate by Pneumatic
|
Deco Color Lamination Parts:
