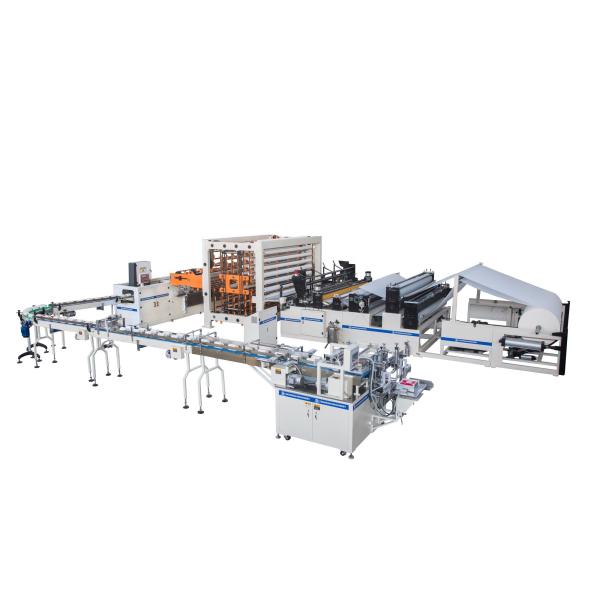

Full Automatic High Speed Non-stop Paper Line Toilet Paper &
Kitchen towel Lamination Rewinding and Perforating Machine
Specification for Toilet Paper
Rewinding Machine w...
Description
Full Automatic High Speed Non-stop Paper Line Toilet Paper &
Kitchen towel Lamination Rewinding and Perforating Machine can slit and rewind the single ply tissue into two, three or four
plies tissue, for the production of paper towels, napkin paper,
boxed tissue, facial tissue and so on.
The machine features good mechanical performance, compact
structure, pneumatic parts, stable running, and easy operation. The
finished products have a compact structure.
Specification
Model | 2900 |
Raw Material Width(mm) | 2850 |
Speed | 400-500m/min |
Finished products diameter(mm) | diameter 1300 |
Slitting Width(mm) | adjustable |
Finished products core Diameter(mm) | 76.2(Please specify other specifications) |
Unwinding Unit | 1-3 layer(Can be appointed) |
Base paper core shaft | Air-shaft |
Rewinding System | Pneumatic timing rewinder |
Slitting System | Automatic slitting control |
Discharging Unit | Automatic discharging |
Edge Cutting Unit | Vacuum suction edge cutting 1.5 KW |
Power | Frequency conversion speed regulate 11KW Double embossing frequency conversion speed regulate 15KW |
Pneumatic system | 3HP air compressor, min. pressure 5kg/cm2pa ( provide by user) |
Dimensions(L x W x H)(mm) | 8500X4000X2100 |
Weight | 5000KG |
Functions and Features
1 . Synchronous belt transmission, make it stable-running and less
noise even though at high speed operation.
2 . Adopt the widen belt on back-stand to increase the friction
when feeding paper.
3 . Equipped with newly fasten unit, making it is convenient to
adjust the raw material.
4 . With the function of pneumatic paper loading, edge vacuum
suction.
5 . Automatic finished roll discharging, Solve the deformation
caused by falls paper phenomenon, save the labor force. (Optional)
6 . Easy operation, the finished products have good winding
profiles and clean cutter.
Spiral knife
