Rewinding Machine w...Fully automatic toilet tissue paper roll production line making
machine
Description

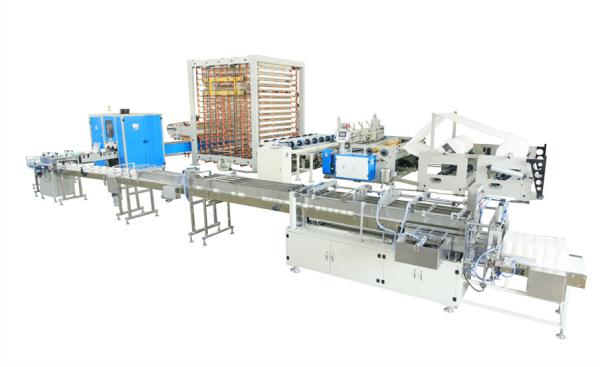

Fully automatic toilet tissue paper roll production line making
machine can slit and rewind the single ply tissue into two, three or four
plies tissue, for the production of paper towels, napkin paper,
boxed tissue, facial tissue and so on.
The machine features good mechanical performance, compact
structure, pneumatic parts, stable running, and easy operation. The
finished products have a compact structure.
Specification
Model | 2900 |
Raw Material Width(mm) | 2850 |
Speed | 400-500m/min |
Finished products diameter(mm) | diameter 1300 |
Slitting Width(mm) | adjustable |
Finished products core Diameter(mm) | 76.2(Please specify other specifications) |
Unwinding Unit | 1-3 layer(Can be appointed) |
Base paper core shaft | Air-shaft |
Rewinding System | Pneumatic timing rewinder |
Slitting System | Automatic slitting control |
Discharging Unit | Automatic discharging |
Edge Cutting Unit | Vacuum suction edge cutting 1.5 KW |
Power | Frequency conversion speed regulate 11KW Double embossing frequency conversion speed regulate 15KW |
Pneumatic system | 3HP air compressor, min. pressure 5kg/cm2pa ( provide by user) |
Dimensions(L x W x H)(mm) | 8500X4000X2100 |
Weight | 5000KG |
Functions and Features
1 . Synchronous belt transmission, make it stable-running and less
noise even though at high speed operation.
2 . Adopt the widen belt on back-stand to increase the friction
when feeding paper.
3 . Equipped with newly fasten unit, making it is convenient to
adjust the raw material.
4 . With the function of pneumatic paper loading, edge vacuum
suction.
5 . Automatic finished roll discharging, Solve the deformation
caused by falls paper phenomenon, save the labor force. (Optional)
6 . Easy operation, the finished products have good winding
profiles and clean cutter.
Machine have core feeding unit. Raw material from jumbo roll after
full embossing or edge embossing, then perforation, end cutting and
spray the tail glue become a log. Then it can working with cutting
machine and packing machine to become the finished products. The
machine is controlled by PLC, people operate it through touch
screen, the whole process is automatic, easy to operate, lower the
man cost. And Our machine can special-made according to clients'
requirements.
